Environment configuration — why, what and how?

Secrets Management is an important aspect of software engineering. This article will highlight the why and what of the problem and reason about the different solutions that exist.

Configuration Management is an important aspect of software engineering. This article will highlight the why and what of the problem and reason about the different solutions that exist.

The approach to managing configuration changes as the app scales — both in terms of traffic and developer team size. To illustrate the journey, lets start with a simple app.

This is a simple server app that connects to MongoDB and returns the list of users. The code is just pseudo code and is not meant to adhere to any language.

A simple server that connects to MongoDB

Hardcode configuration in app: a BIG NO!

Don’t hardcode variables inside the app

Hardcoding the MongoDB uri into the app will it really hard to run the application in any other environment — like fellow teammates’ laptops, or for production. We should follows the 12 factor app methodology here to separate config from code.

“ SEPARATE CONFIGURATION FROM CODE “

Now the question is what comprises an app’s config? Quoting from https://12factor.net/config

An app’s config is everything that is likely to vary between deploys (staging, production, developer environments, etc). This includes:

1. Resource handles to the database, Memcached, and other backing services

2. Credentials to external services such as Amazon S3 or Twitter

3. Per-deploy values such as the canonical hostname for the deploy

The easiest and most common way to separate configuration from code is to put the variables in a .env file.

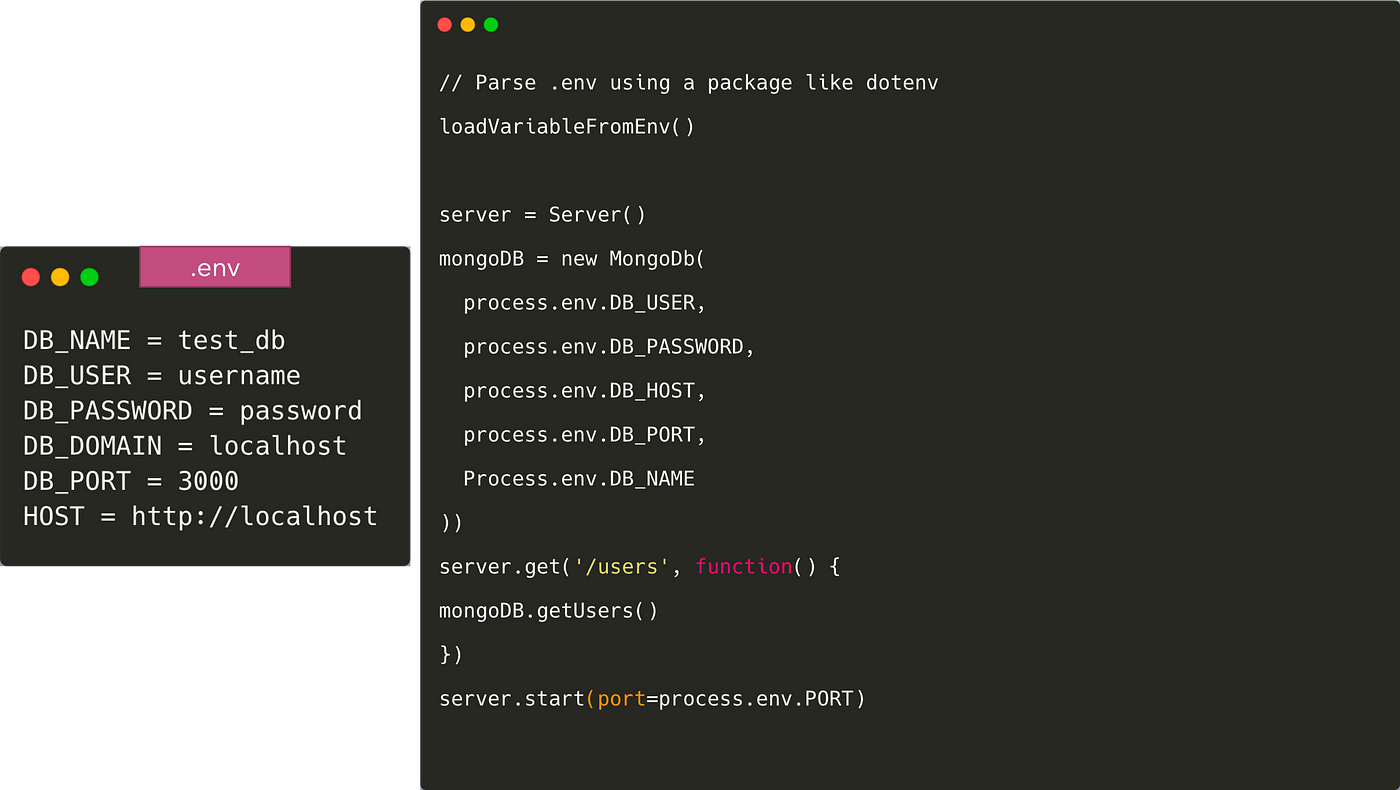

.env file for configuration and code separate in server.js

Once we do this, we need to load the variables in code from the .env file. There are several packages to do like dotenv and dotenv-expand. The .env file is not pushed to Git in this case and every developer overwrites the variable according to their own environment. To give all developers an idea of what environment variables need to be added, we usually commit a file like .env.example to Git.

We will also need to provide values of these variables in the staging and production environments. Almost all deployment systems provide a way to store and provide environment variables like ConfigMap and Secrets in Kubernetes, or S3 for Elastic Container Service.

We will need to copy these variables to those environments and keep it synced whenever developers add / remove environment variables. One possible approach is to have a separate .env file for staging, production, etc environments.

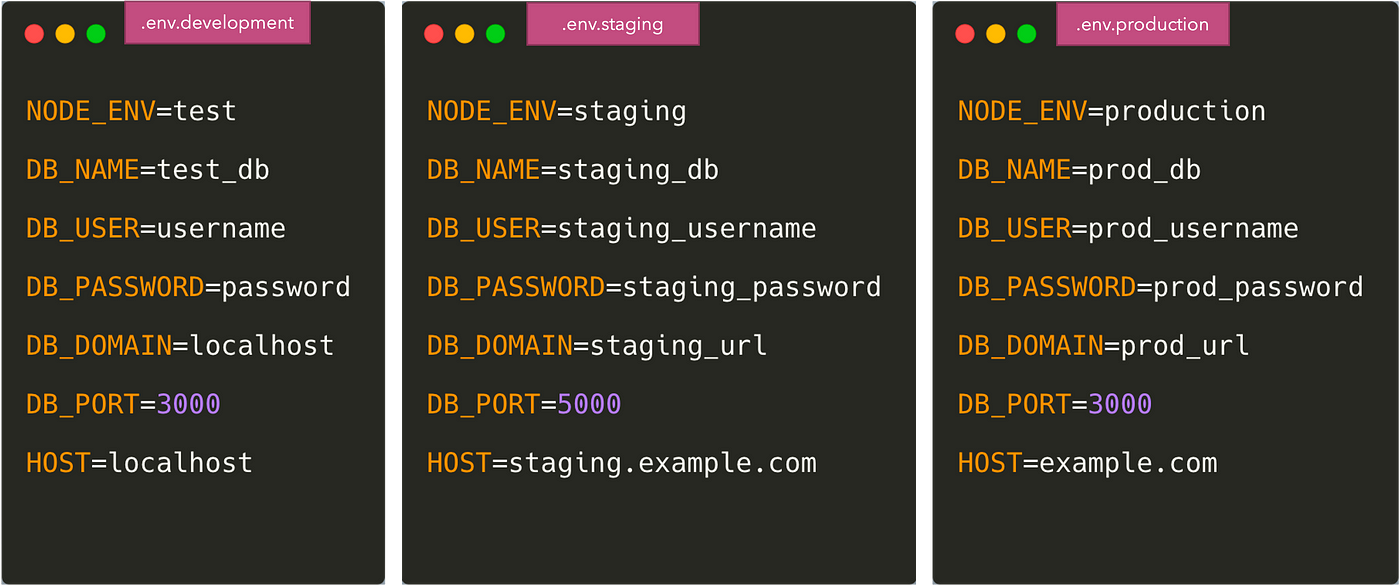

One .env file for each environment

How and where do we store the environment specific .env files?

One may suggest storing these files in Git but there is a big security issue in that case — specially for some of the sensitive credentials in the env files.

  1. We probably don’t want all developers to have access to database credentials and other such security-sensitive information.
  2. Storing all the credentials in plain text in Github repository is also a big security risk from a point of view of security leak.

People use different approaches here — however some of the well known methods are:

  1. Store encrypted values in the Git repository and the values can be decrypted only by someone who has the keys. A good library for achieving this is https://github.com/StackExchange/blackbox
  2. Use external storage: This approach relies on storing the environment variables for staging, production , etc in a different storage layer like S3 or AWS Parameter Store. Only the production, staging environments have the permissions to read these values and hence it can be safeguarded from developers. SecretManagers also come in here that can store the secrets encrypted, provide access control and can also automatically rotate the secrets. A few examples of such secret managers / parameter stores are:
Different alternatives for Paramaeter Store / SecretsManager

While using any of these external systems, we have now split the configuration between the .env files and the secretmanagers. Some of the non-sensitive params will come from the .env files and some will come from the remote storage of credentials. We can argue that we can store all the params in the remote storage — but it can be an overkill sometimes. So now what we end up with is:

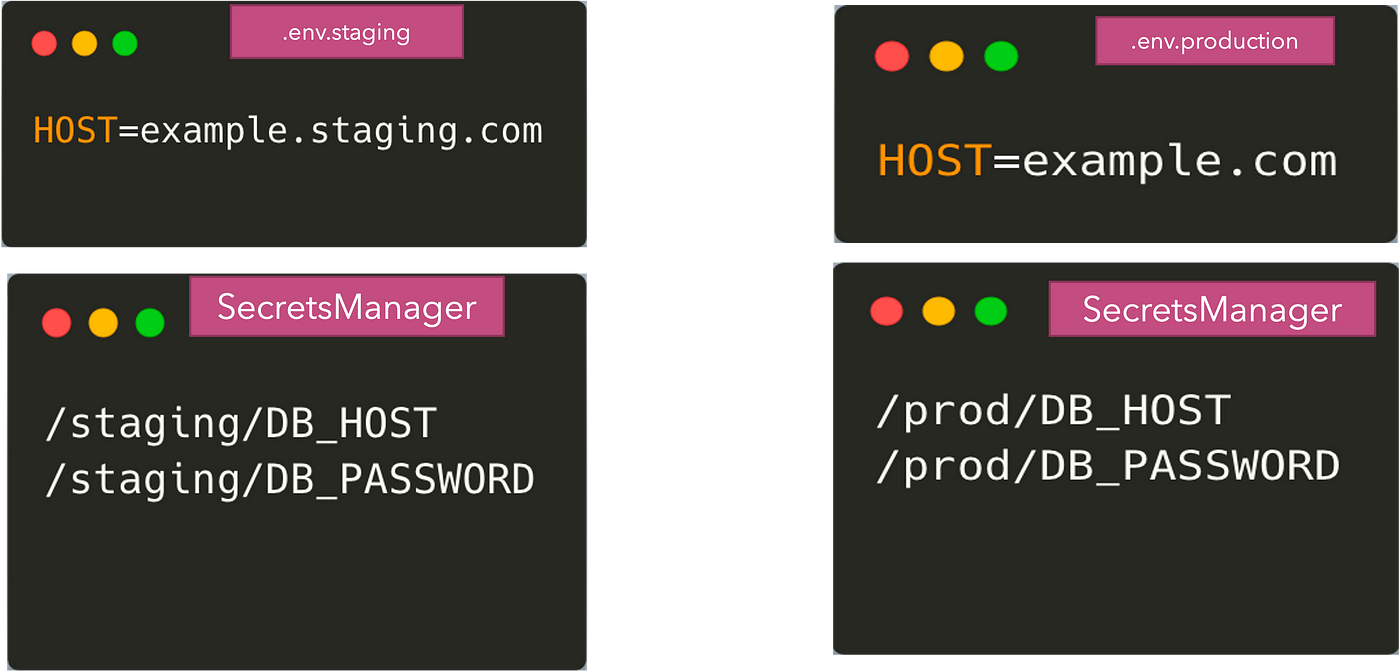

Configuration split between .env files and secretmanagers

Our application now needs to have code to read from both these sources of configuration. Reading from the .env files can be done using the dotenv package, however, getting the environment variables from the secretmanagers requires us to use their corresponding APIs to get the values.

Server code to read from both configuration sources

This solves the issue of keeping our configuration secure and also follow the 12-factor methodology.

However, writing application code to get secrets ends up being a repetitive practice wherein every application now needs to add secretmanager specific code to get the values from the api. This also means that if we ever change our secretsmanager provider. the code in all the applications needs to change. To solve this problem, there can be a few approaches:

  1. Abstract the code to pull secrets as a standard library to be shared across all your applications. It can simplify the problem to some extent.
  2. Sync values from the secretmanagers to the hosting environment in an async way — this requires an external system that can make it difficult to synchronize code releases and configuration changes. For example, vault-k8s allows syncing Vault secrets to Kubernetes environments.
  3. Use paid solution like Doppler (doppler.com)
  4. Use open source solutions like SecretsFoundry — this allows you to talk to differnet secretmanagers without adding any code in your applications. I will be writing more on SecretsFoundry in my next article.

Configuration management is complex and should be done properly from the start to ensure developer velocity remains high without sacrificing security aspects. Kubernetes, which is most widely used today to deploy applications comes with its own configuration and secret management, which I will dive into in another article. Also, if you are using some other way for configuration management, please mention it in the comments — I would love to know more and learn from you!
